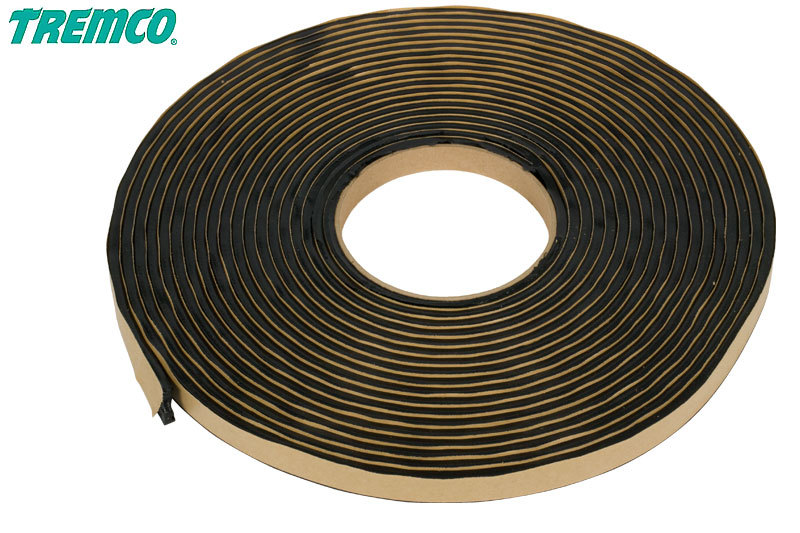

VISIONstrip® is a precision-extruded glazing seal consisting of an EPDM rubber extrusion positioned at the sightline with a 100% solids, highly adhesive, cross-linked performed butyl sealant bonded below the rubber extrusion.
- A single component profile achieving a positive-wet seal between the metal and glass surfaces while providing a clean gasket appearance at the sightline.
- Used in compression glazing systems wherever the design calls for high performance glazing of curtain wall, unitized curtain walls, punched and ribbon window systems and sloped glazing applications.
Face Clearance
1/16″ 0.060” F.C. – 650 ft c/s
1/8″ 0.125” F.C. – 440 ft c/s
3/16″ 0.188” F.C. – 350 ft c/s
1/4″ 0.250” F.C. – 300 ft c/s
